304 Stainless Steel Frameless Glass Door Pivot Hinge

Product detail

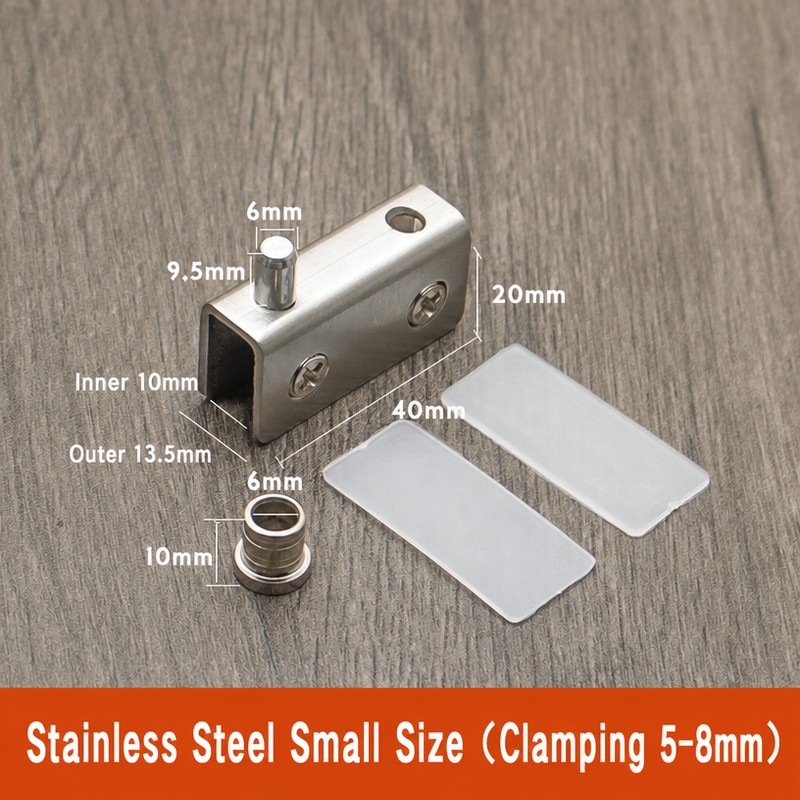

Clamp-on pivot hinge engineered for frameless glass cabinet and display doors, built from 304 stainless steel with a choice of polished, brushed, black electrophoretic or bright polished finishes. The no-drill clamp design grips the glass edge and locks with hardened self-tapping screws, so existing glass panels can be fitted without boring holes. A soft silicone pad sits between the clamp and the glass to spread load and prevent edge chipping or stress cracks. The dual top-and-bottom pivot structure supports the door at two points, keeping heavier glass leaves vertical and square through thousands of open and close cycles. Three clamp sizes cover 5-8mm, 8-10mm and 10-12mm glass, with side-mount and top-and-bottom variants for different cabinet builds. Hydraulic damped and assist-arm versions are available for quiet, controlled closing. Widely used on wine cabinets, display and showcase units, cupboards, bathroom glass doors and aquarium clamps. Packed as a cross-border ready export item with 48-hour dispatch and a minimum order of a single piece. Importers can hold one clamp family across the shower and partition thicknesses they sell, so the range stays compact and the shelf facing strong. Shower enclosures and display cabinets use the clamp-on fitting where a drilled glass door is not an option, and because the glass is only clamped, a damaged pane can be swapped without replacing the hardware.
