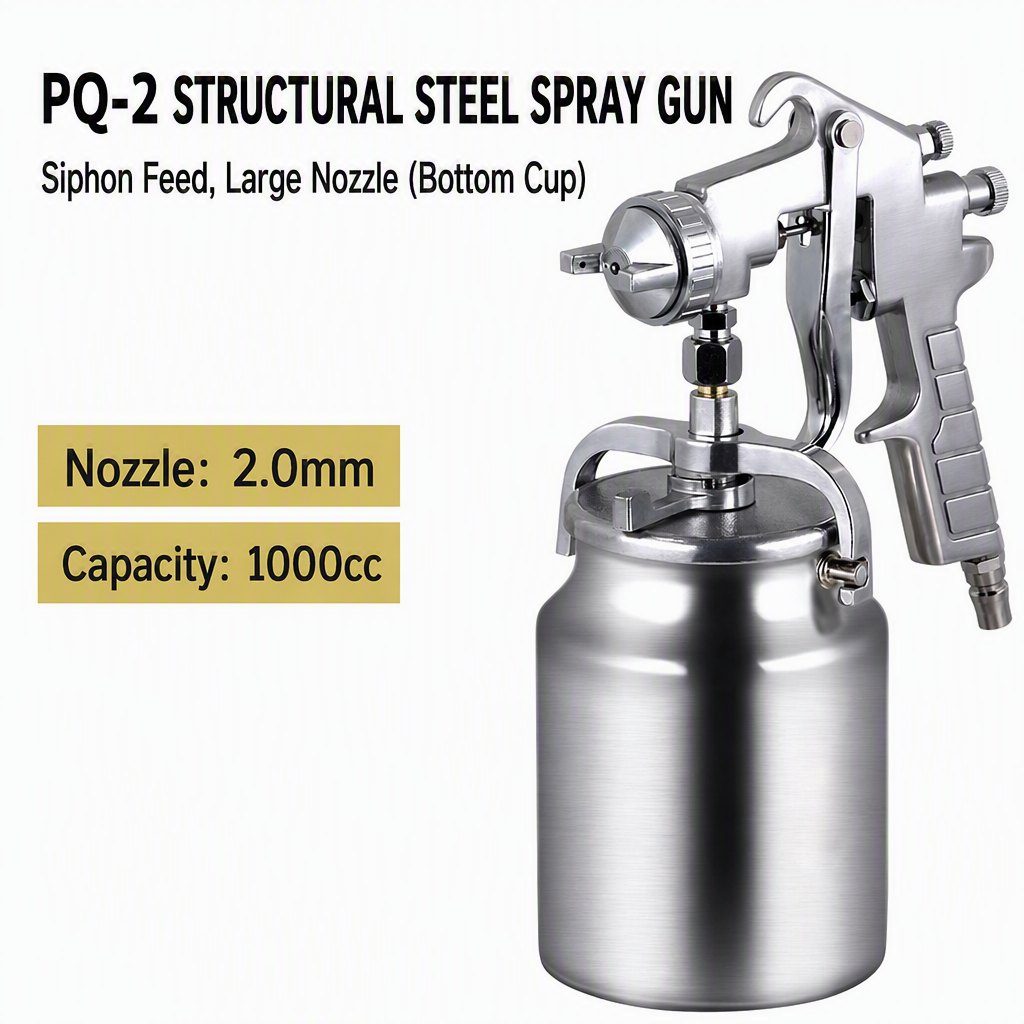

PQ-2 Large Capacity Siphon Feed Spray Gun 1000cc
Key points
- 1000 cc bottom cup holds enough material for long coating runs
- 2.0 mm nozzle passes primer, enamel and heavier structural coatings
- Suits steelwork, gates, frames and large furniture surfaces
- Metal body and cup strip down easily for cleaning
- Fabricators can coat their own steelwork in house rather than sending it out, which keeps the delivery date under their own control
- Because the same gun covers furniture coating and structural steel work, a distributor can serve both trades from a single shelf line
| Model | PQ-2 |
| Type | Siphon Feed Pneumatic Spray Gun |
| Nozzle | 2.0 mm |
| Cup Capacity | 1000 cc |
| Feed | Siphon (Bottom Cup) |
| Application | Structural Steel And Furniture Coating |
| MOQ | 1 pc |
| Price basis | FOB China |
| Payment | T/T bank transfer |
| Packing | Export carton with moisture-resistant packing |
| Sample | Available before a bulk order |
| Lead time | Confirmed in your quotation |
Product detail
Large-capacity siphon feed spray gun built for coating work that a small touch-up gun cannot cover. The 1000cc bottom cup sits below the gun and the material is drawn up by the air stream, so a long run of paint or primer can be laid down without stopping to refill, and the 2.0mm nozzle passes heavier materials such as primer, enamel and structural coatings without clogging. That combination suits steelwork, gates, railings, frames, workshop machinery and large furniture surfaces, where the job is measured in square metres rather than touch-ups. The metal body and cup strip down easily for cleaning after use. The gun is supplied on its own, so it runs from any workshop compressor with a standard coupling. A practical volume-coating line for fabricators, painting contractors and tool distributors. Mixing a full cup once for a long run keeps the painter at the job instead of walking back to the bench to remix, and it leaves less part-used material and cleaning solvent at the end of the day. Body shops and industrial finishers use a large-cup siphon gun for primer and undercoat, where volume matters more than fine atomisation; the bigger cup means fewer refills on a long panel run. Siphon feed also keeps the weight below the hand, so the gun stays balanced as the cup empties instead of tiring the wrist towards the end of a run. For a contractor coating site steelwork, the metal body and cup strip down at the van and are put away the same day rather than left to soak overnight.
