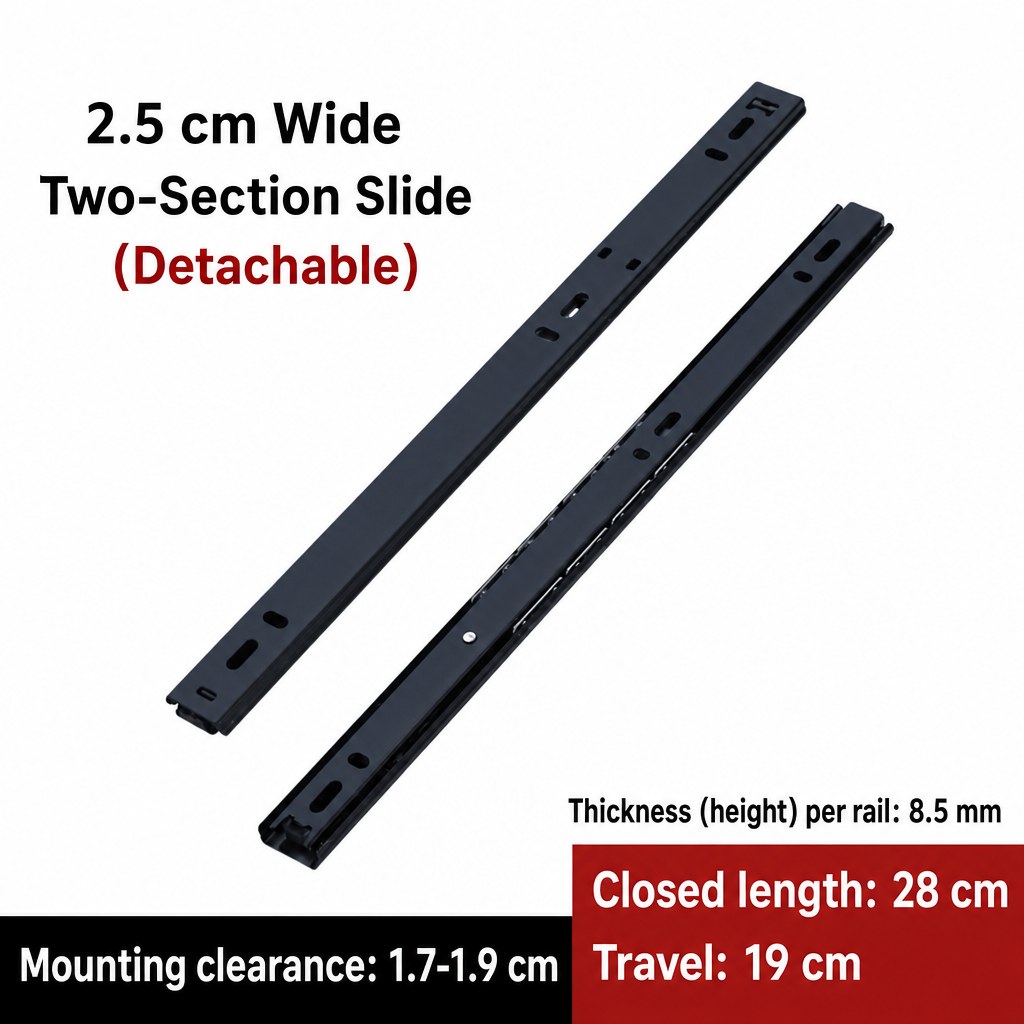

Two-Section Drawer Slide 28 cm (Detachable Rail)
Key points
- Detachable rail lets the drawer be lifted off the carcass without tools
- 8.5 mm high profile adds little to the side of a drawer, protecting internal space
- 19 cm travel on a 28 cm rail suits shallow drawers, keyboard trays and tool trolleys
- Black finished steel body takes a plain screw fixing on site
- Packs flat, so a bulk order ships economically
| Rail Width | 25 mm |
| Thickness | 8.5 mm |
| Closed Length | 28 cm |
| Travel | 19 cm |
| Mounting Clearance | 1.7 - 1.9 cm |
| MOQ | 1 pair |
| MOQ | 1 pair |
| Price basis | FOB China |
| Payment | T/T bank transfer |
| Packing | Export carton with moisture-resistant packing |
| Sample | Available before a bulk order |
| Lead time | Confirmed in your quotation |
Product detail
Two-section steel drawer slide with a detachable rail, chosen where the drawer box has to be lifted out for loading, cleaning or servicing rather than simply pulled open. The rail is 25 mm wide, 8.5 mm high and 28 cm closed, with 19 cm of travel and a mounting clearance of 1.7 to 1.9 cm, which suits shallow drawers, keyboard trays, tool trolleys, instrument cases and light furniture where a full three-section slide would be more hardware than the job needs. The low profile adds very little to the side of a drawer, so internal drawer space is not sacrificed. Because the rail separates from its bracket, a drawer can be taken off the carcass without tools and dropped back on again, which saves time in production and in service. The steel body carries a black finish and takes a plain screw fixing. A low-cost, high-turnover line for furniture makers and hardware counters, and it packs flat for economical shipping.
