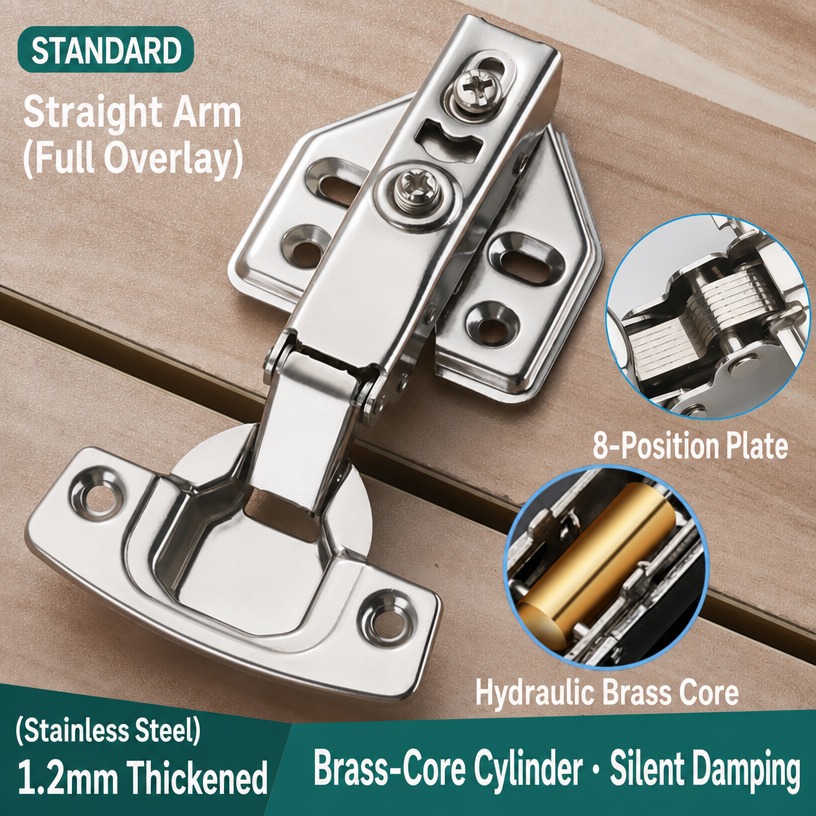

Stainless Steel Clip-On Aircraft Damping Hinge (1.2 mm)
Key points
- 1.2 mm stainless body holds its shape on heavy doors better than the usual 1.0 mm pressing
- Eight-position plate gives enough travel to set door gaps without drilling fresh holes
- Brass-core hydraulic damper cushions the final closing arc so doors shut quietly
- Clip-on arm lifts off the plate, so doors are hung and removed without undoing plate screws
| Material | Stainless Steel |
| Arm Type | Straight arm, full overlay |
| Body Thickness | 1.2 mm |
| Adjustment | 8-position mounting plate |
| Damping | Hydraulic brass-core cylinder |
| MOQ | 1 pc |
| MOQ | 1 pc |
| Price basis | FOB China |
| Payment | T/T bank transfer |
| Packing | Export carton with moisture-resistant packing |
| Sample | Available before a bulk order |
| Lead time | Confirmed in your quotation |
Product detail
Straight-arm clip-on cabinet hinge in stainless steel, built around the aircraft-type spring layout that keeps the door under tension through the whole swing. The body is pressed from 1.2 mm stainless sheet, noticeably thicker than the ordinary 1.0 mm stock, and the damping cylinder runs on a brass core so the last part of the closing arc is cushioned instead of being left to the spring alone. The mounting plate carries eight adjustment positions, which gives a fitter enough travel to set the door gap across a run of cabinets without drilling fresh holes. The clip-on arm releases from the plate at the press of a lever, so doors can be hung and lifted off during a fit and dropped back without touching the plate screws. A sound choice for kitchen, wardrobe and shop-fitting work where doors are heavy or opened constantly.
