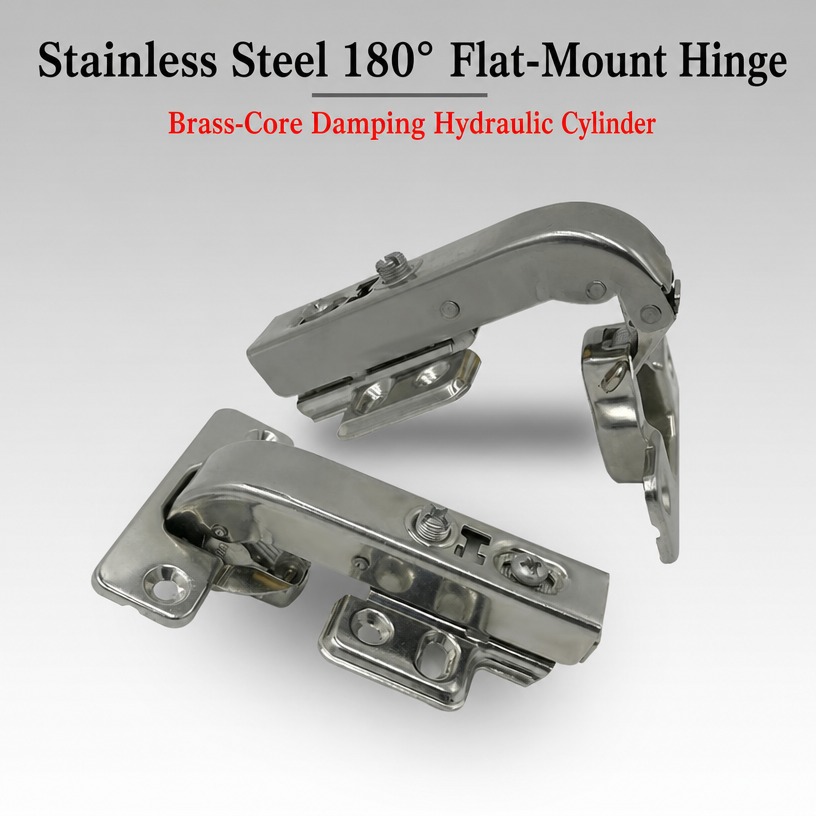

304 Stainless Steel 180-Degree Flat-Mount Damping Hinge
Key points
- Opens a full 180 degrees, so corner and breakfast-bar doors clear the counter run
- Hydraulic brass-core damper draws the door shut instead of letting the spring take over
- Flat surface-mount plate avoids boring a 35 mm cup into slim or glass-backed doors
- Two plate screw positions allow the door to be re-aligned after it is hung
| Material | 304 Stainless Steel |
| Opening Angle | 180 degrees |
| Mounting | Flat-mount surface plate |
| Damping | Hydraulic brass-core cylinder |
| Finish | Brushed stainless |
| MOQ | 1 pc |
| MOQ | 1 pc |
| Price basis | FOB China |
| Payment | T/T bank transfer |
| Packing | Export carton with moisture-resistant packing |
| Sample | Available before a bulk order |
| Lead time | Confirmed in your quotation |
Product detail
Flat-mount cabinet hinge that opens a full 180 degrees and closes on an integrated hydraulic damper, made for corner units, breakfast bars and appliance garages where a standard 110-degree hinge stops the door short of the neighbouring run. The body is finished in 304 stainless and the damping cylinder runs on a brass core, so the door is drawn shut over the last few centimetres rather than left to the spring. Because the hinge is surface mounted on a flat plate instead of dropping into a 35 mm cup, it suits slim doors, glass-backed panels and cabinet rims that have no room for a bored cup. Two screw positions on the plate let the door be shifted for alignment after it is hung, and the mounting screws come in the box. A practical line for kitchen and wardrobe fitters, shopfitters and makers of wall units and vanity cabinets.
